Hypno 2
Audio Visualizer, Video Synthesizer & Re-Sampler
Instant Audio Reactivity - Built-In Microphone, Flexible Routing
Screen-ing Is Believing - Leave your Preview Monitor at Home!
Layer FOREVERRR! - Re-sample 2 channels of video infinitely!
Store Your Entire Media Library w/ the 250GB SSD (upgradable, ez)
$1349 $1499 Pre-Order Patience Pricing (till end of Sep.)
YO! This is a Pre-Order & requires cultivating patience. Shipping begins in Oct. dispatched on a first come basis.
Dealers will begin receiving wholesale quotes once we have entered regular In-Stock Pricing.
Above USD price excludes sales tax, VAT, shipping, import duties, carrier brokerage fees, and other fees where applicable. Ships from USA w/ US PSU.
Demo Videos
Mega Demo Video
COMING SOON

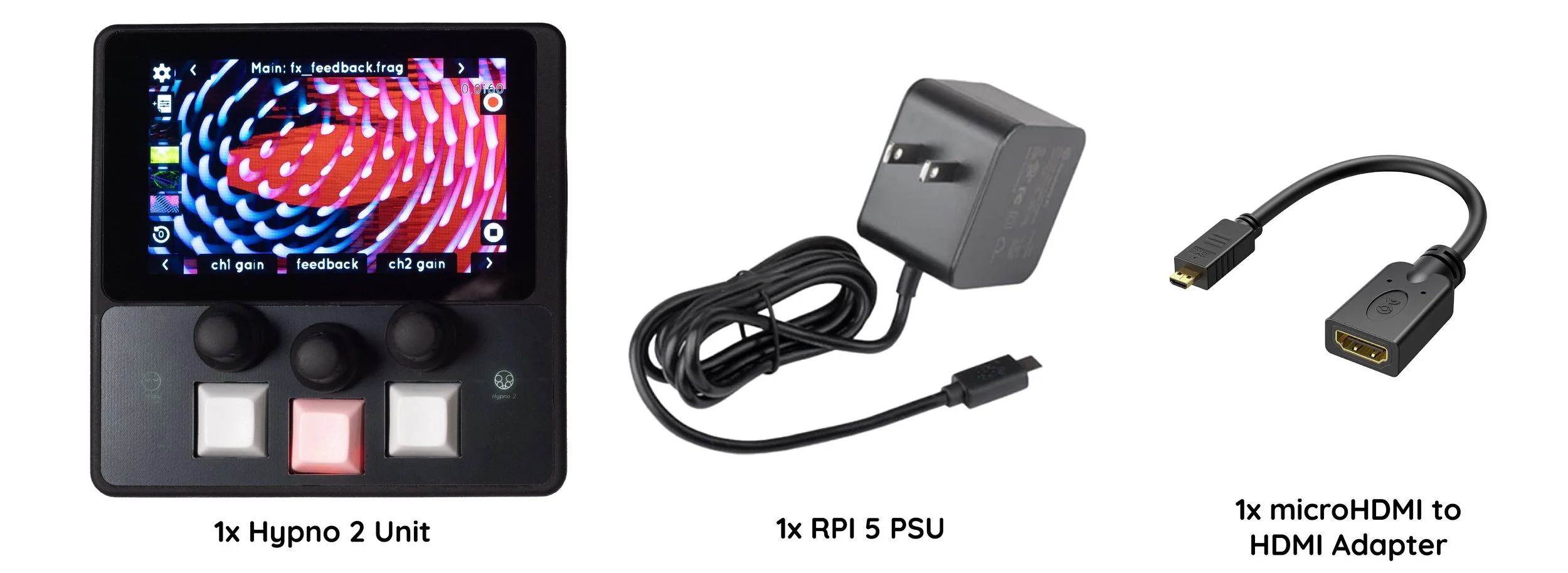

What’s in the Box?

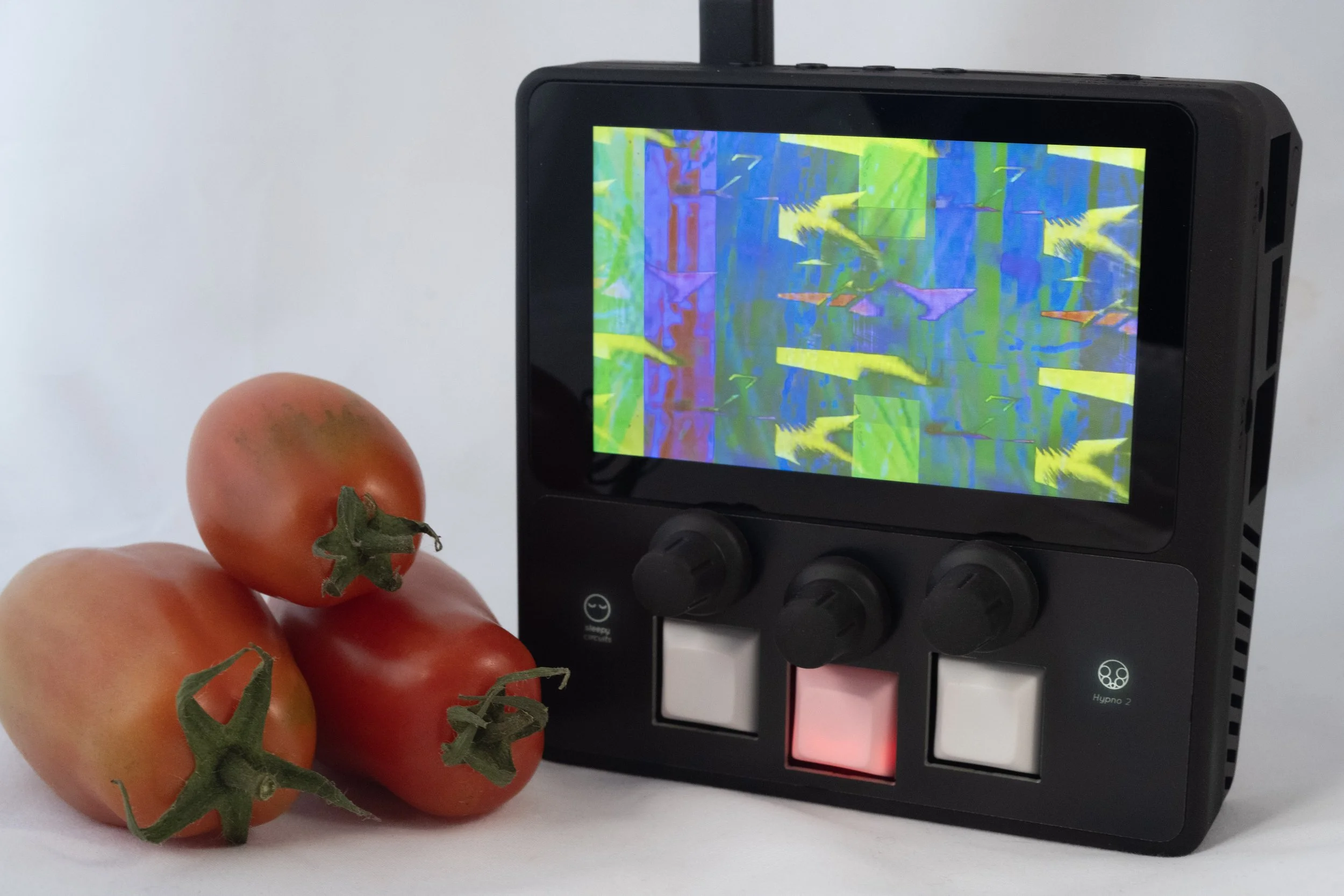

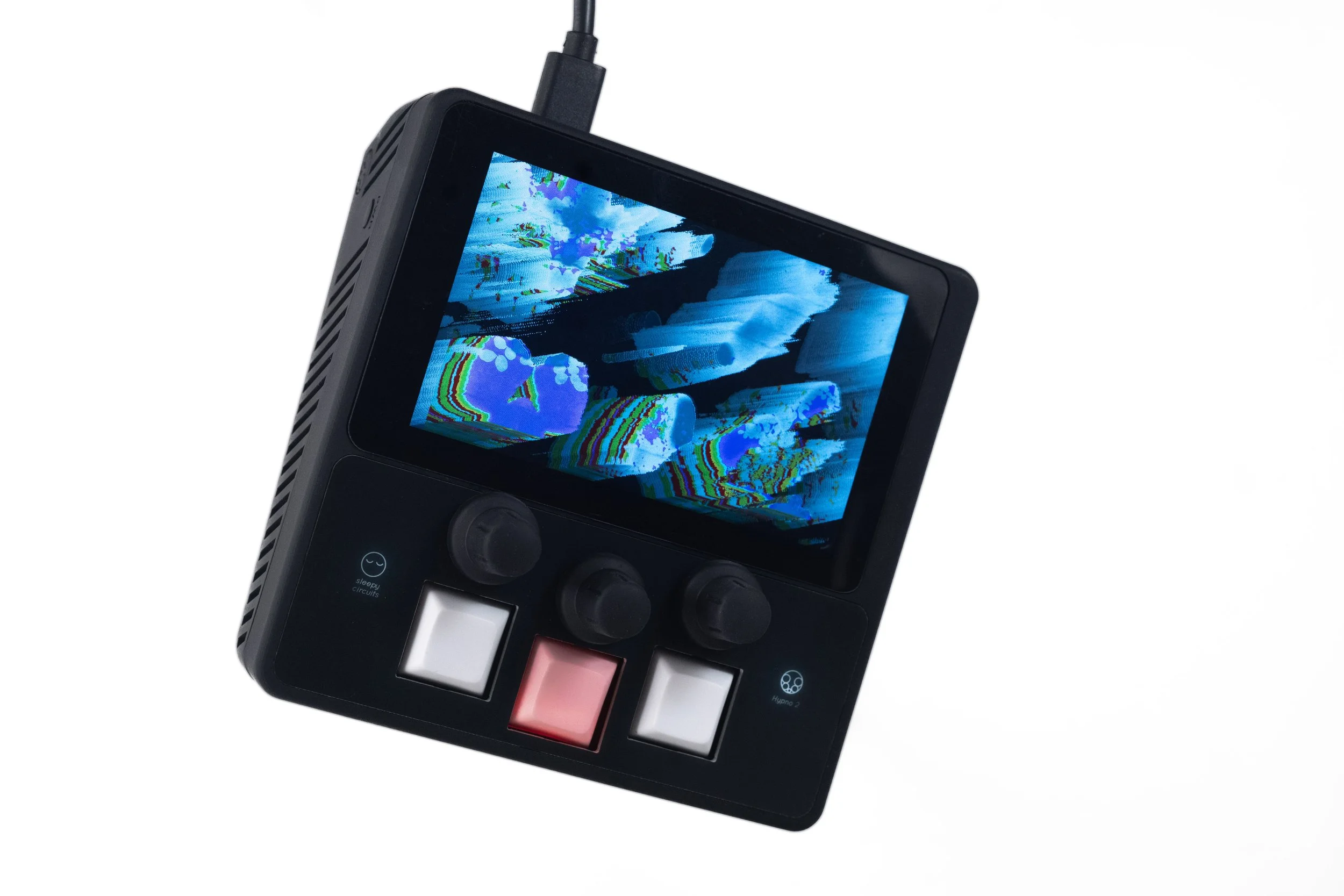

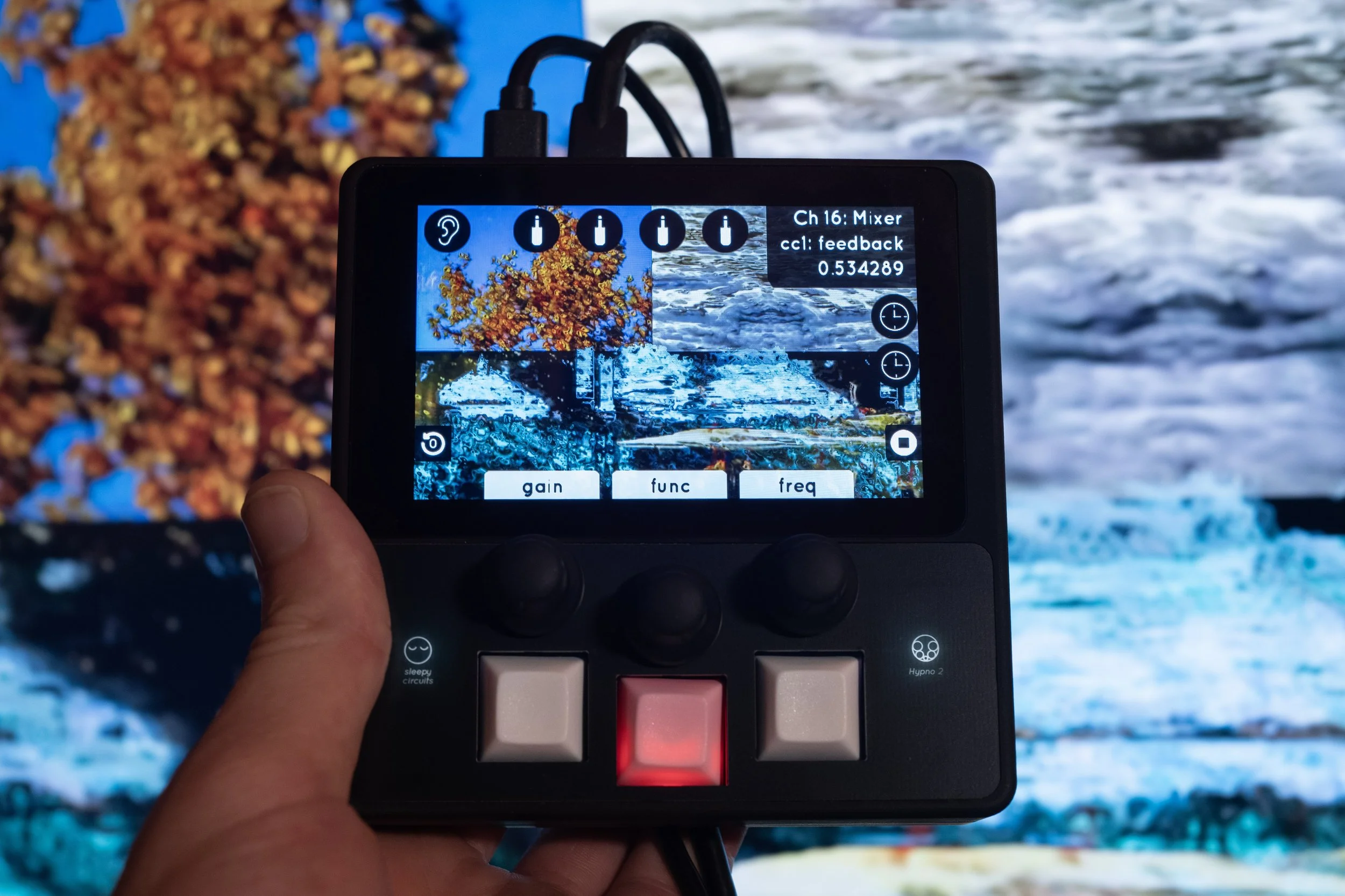

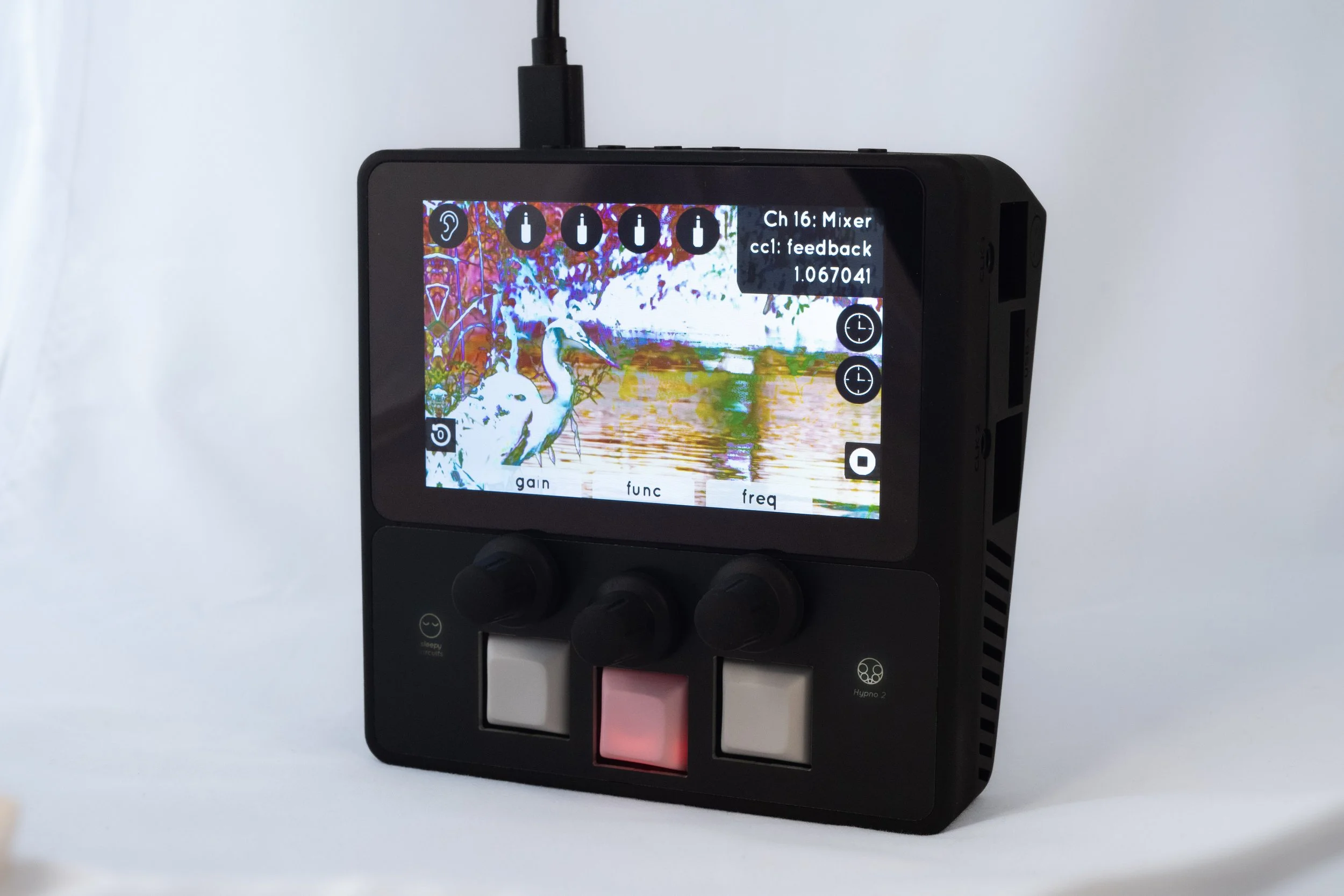

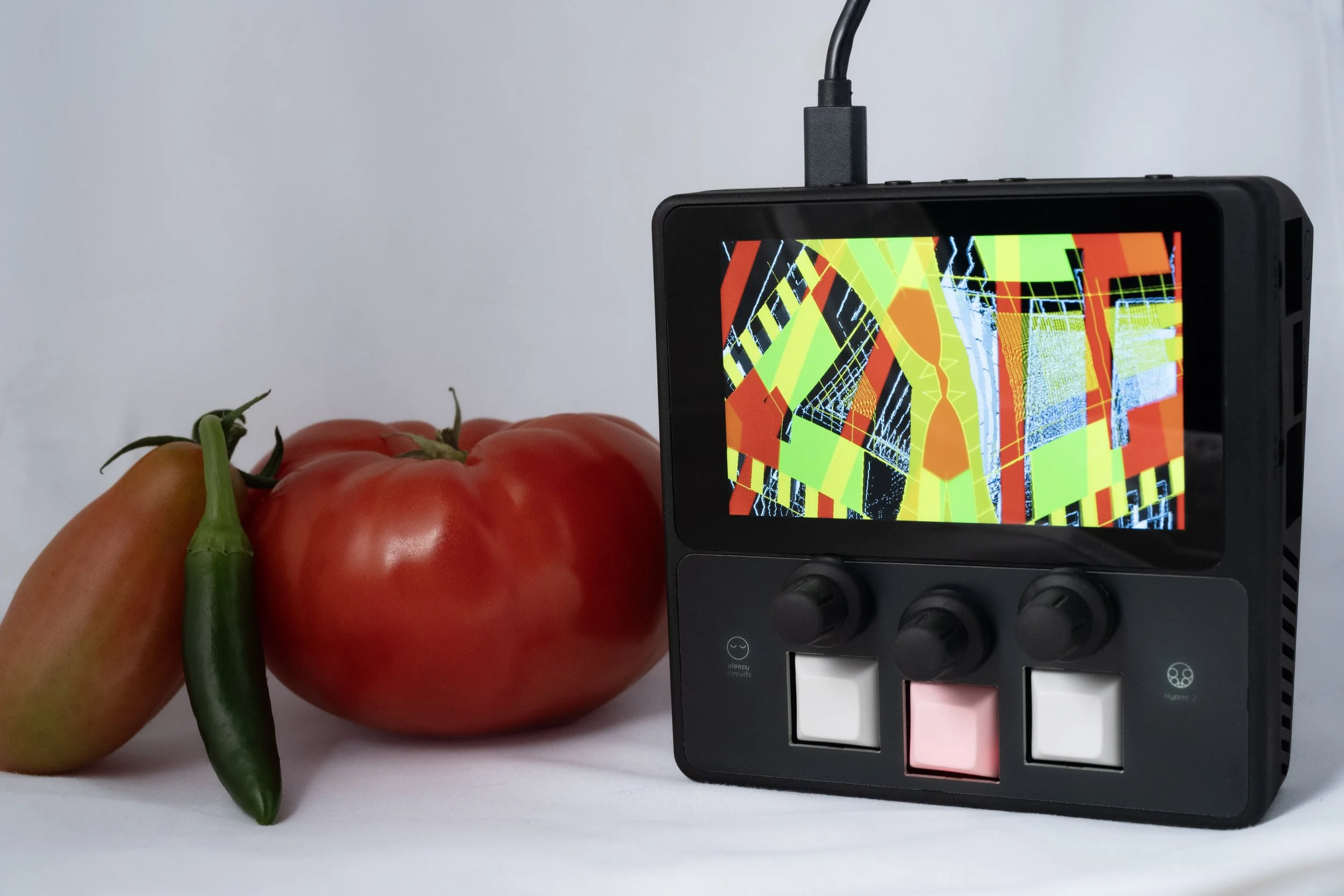

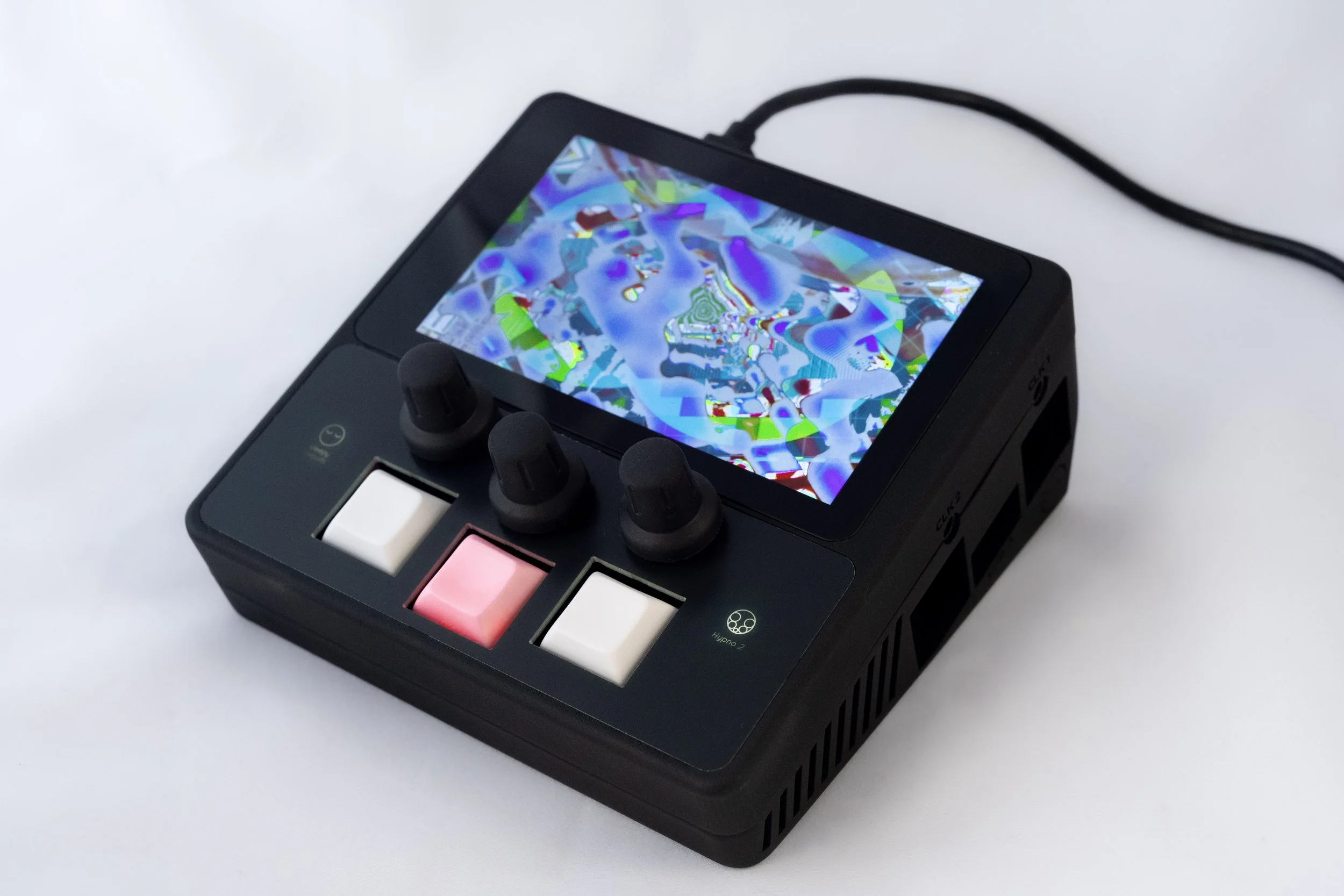

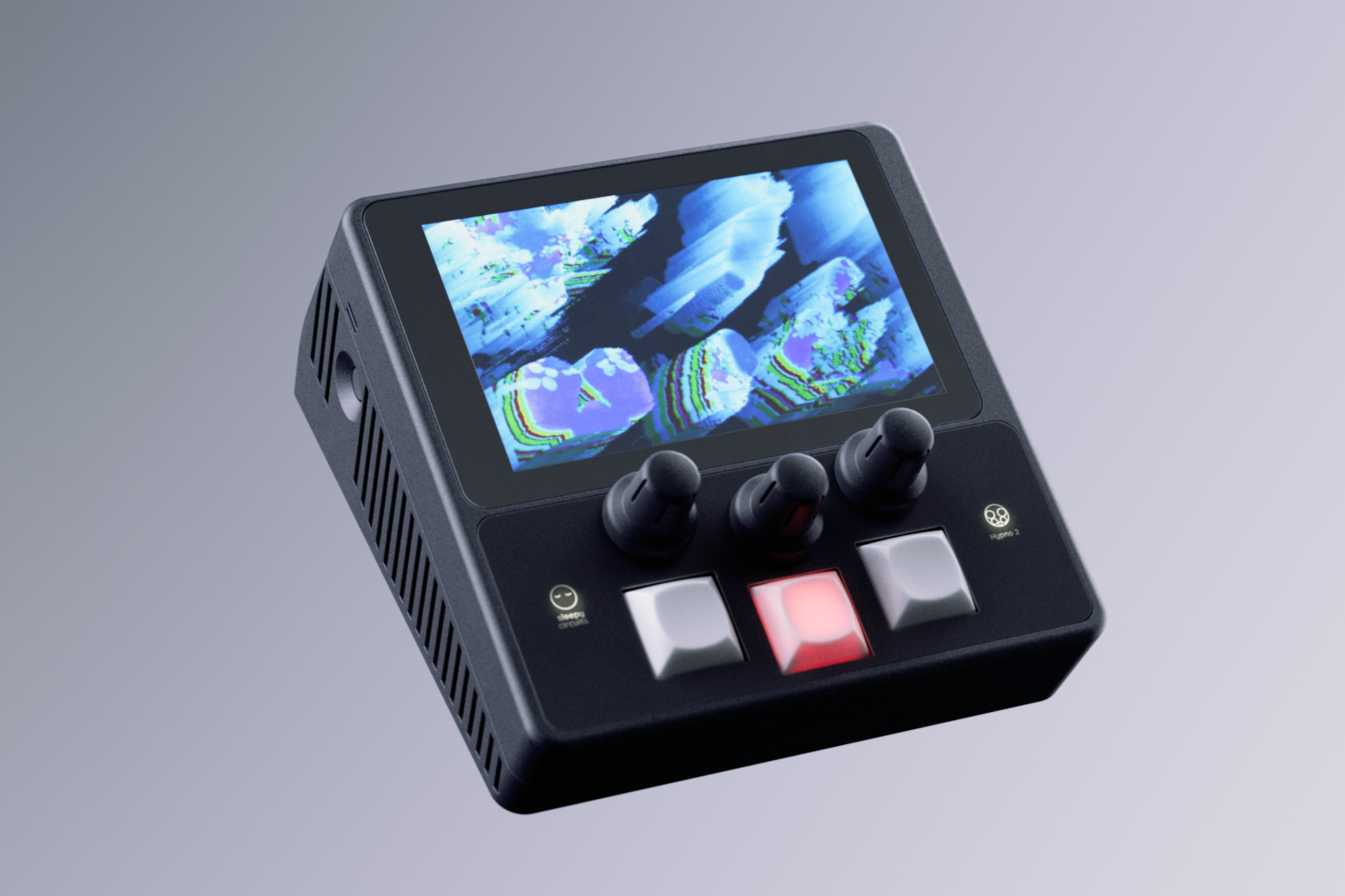

Hypno 2 is an all-in-one hardware Audio Visualizer, Video Synthesizer and Re-Sampler. It is inspired by common analog feedback workflows and aims to modernize their use for the ultimate end-to-end video art dream machine. At its core, Hypno 2 runs 2 channels of video and can save clips of its own output to repeatedly re-sample itself so the possibilities are literally endless.
Whether you are a touring band, an installation mastermind or clandestine pixel explorer, Hypno 2 simplifies your setup by integrating a display, controller, mic, animation systems, MIDI, Analog I/O, a high volume SSD and more in one small box. Not only is it amazing standalone, it can capture clips from your other video gear via a capture card so you no longer have to lug it to the show. A true back-saver for the sleepy Video Artist or Musician!

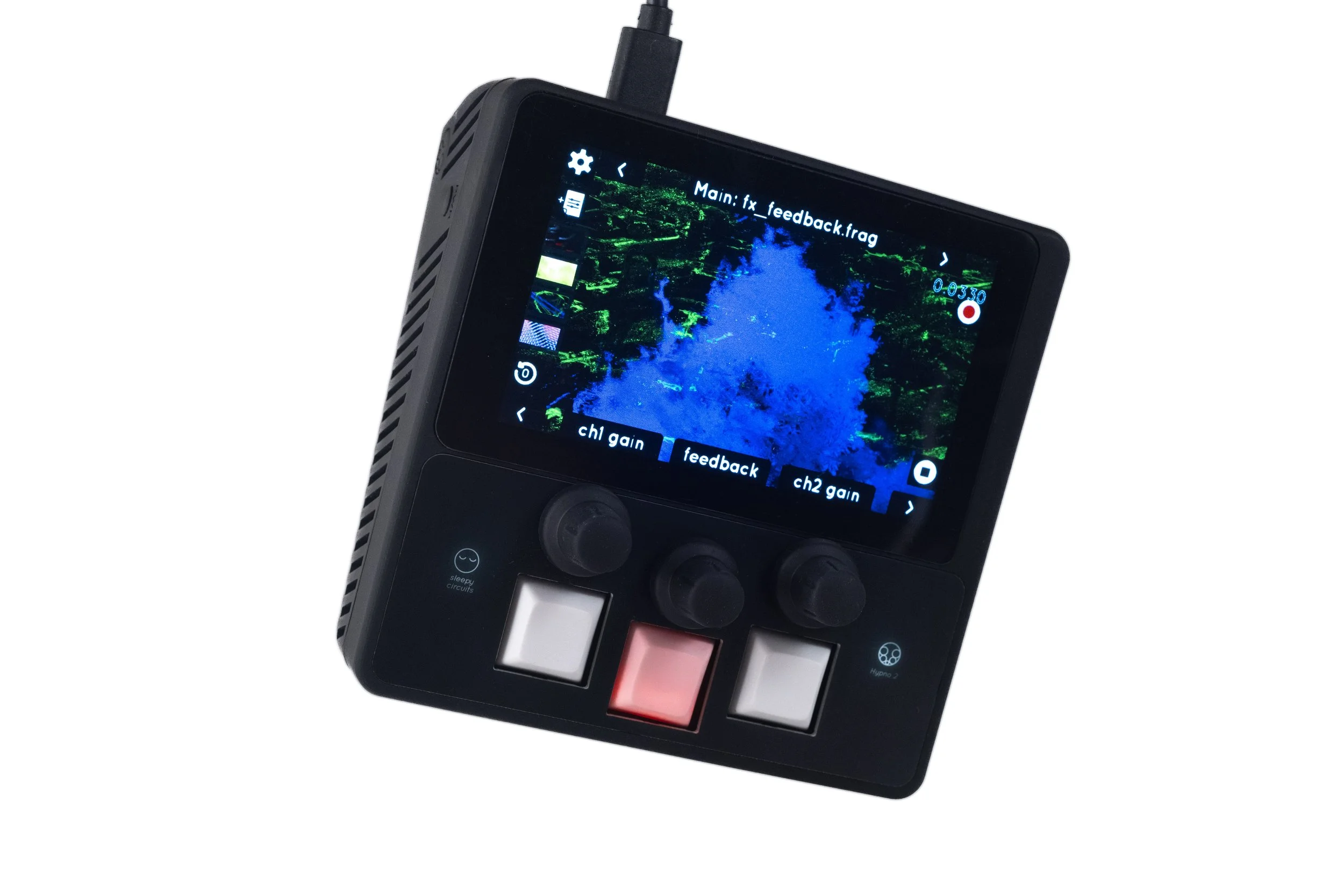

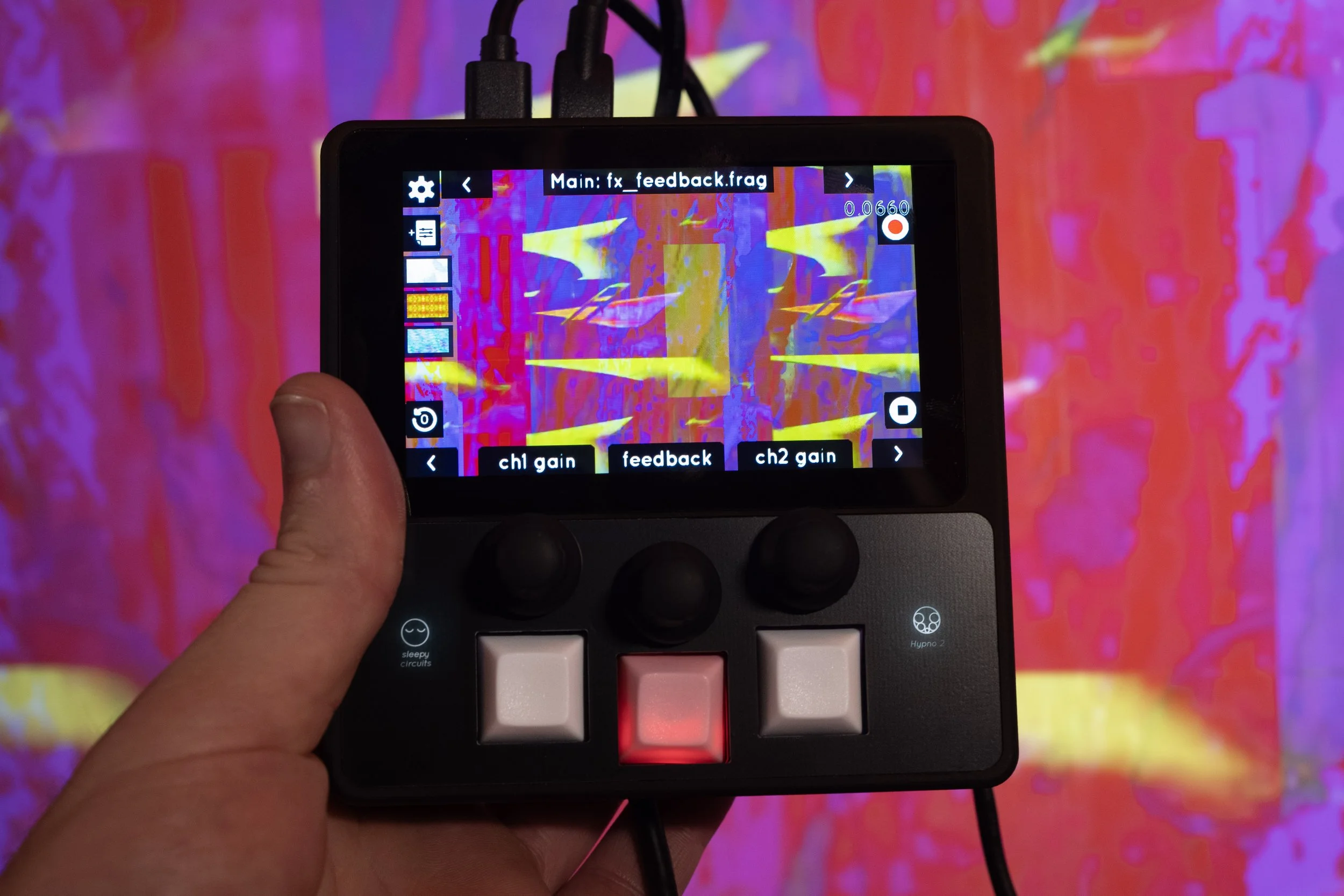

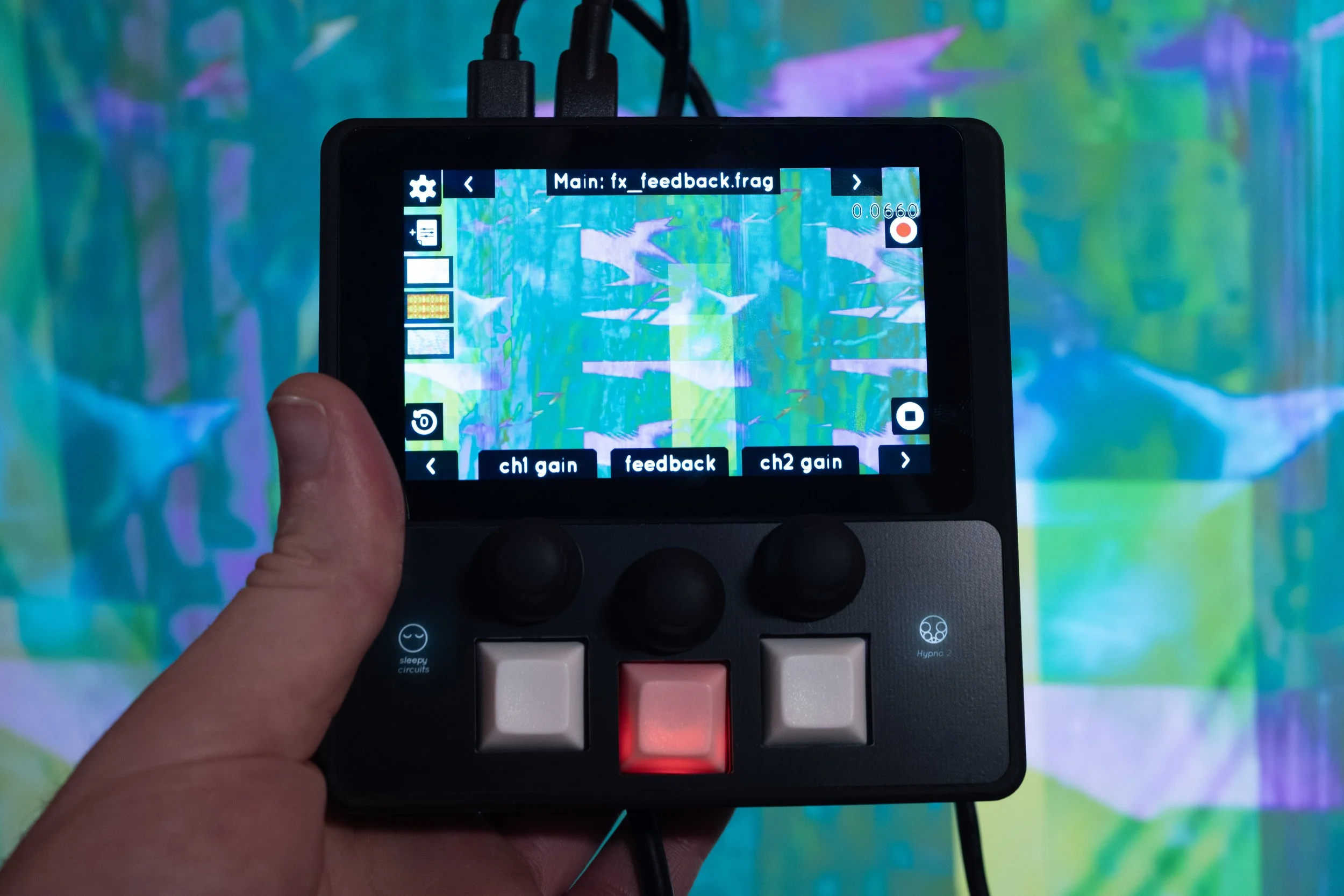

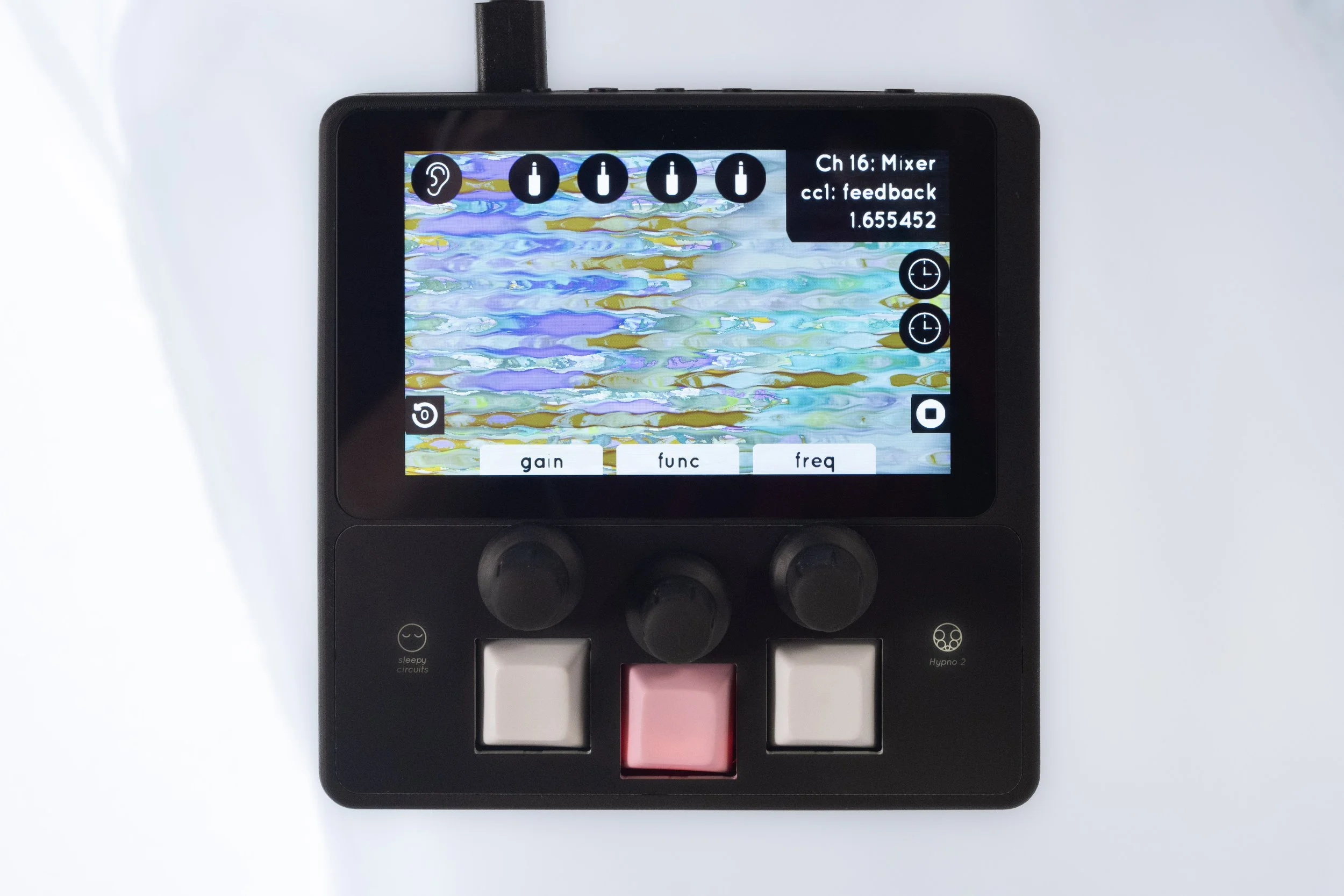

The Hypno 2’s UI uses a unique touchscreen + haptic encoder control scheme. Every parameter is always labeled & spatially consistent with the encoder/button layout while the haptic motor delivers contextual cues. This design is focused on reducing guesswork for the performer and leaning further in to video sampling friendliness, while maintaining the strong, now user programmable, video synthesis capabilities Hypno is known for.
Hypno 2 represents all of the learnings of the past 5 years producing Hypno 1. It uses the battle-proven proprietary sleepy codebase that has been in development over the past 7+ years.
System Specifications
1x 800x480 Capacitive Touch Display ( Flexible UI, File Browser, Search )
1x Raspberry PI 5 (The brains of the operation)
3x “Haptic Notch” Button Encoders
A sleepy original! Makes a buzz on relevant controls to indicate limits and important values
0s a parameter on tap, randoms on repeated tap
3x Mechanical Keyboard Switches (Hot Swappable, comes w/ Kailh Choc v2 RED)
1x Haptic Motor (Vibration Feedback)
1x Onboard Microphone

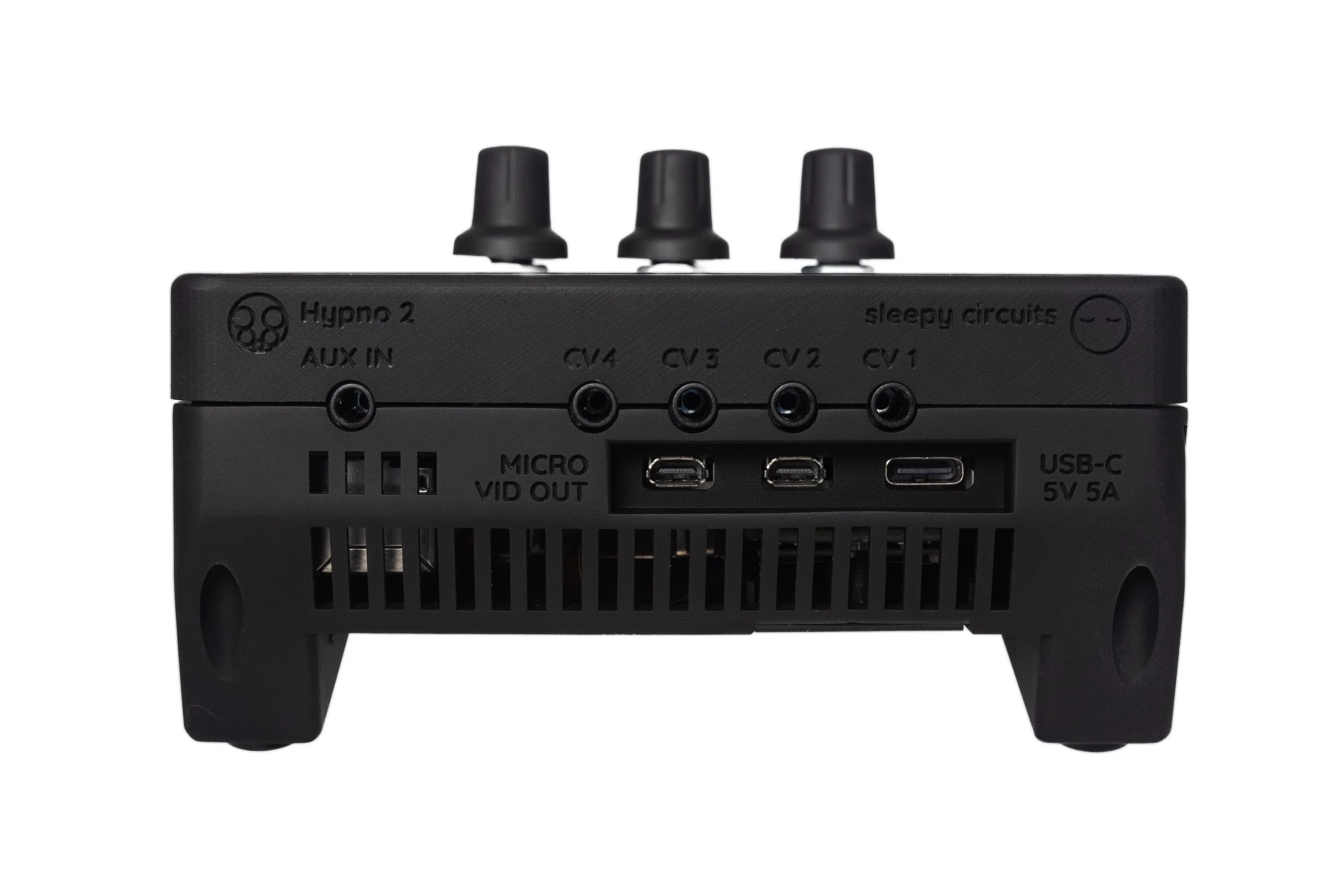

4x CV Inputs (0-5v range, Eurorack Ready)
1x AUX Input (line level audio in)

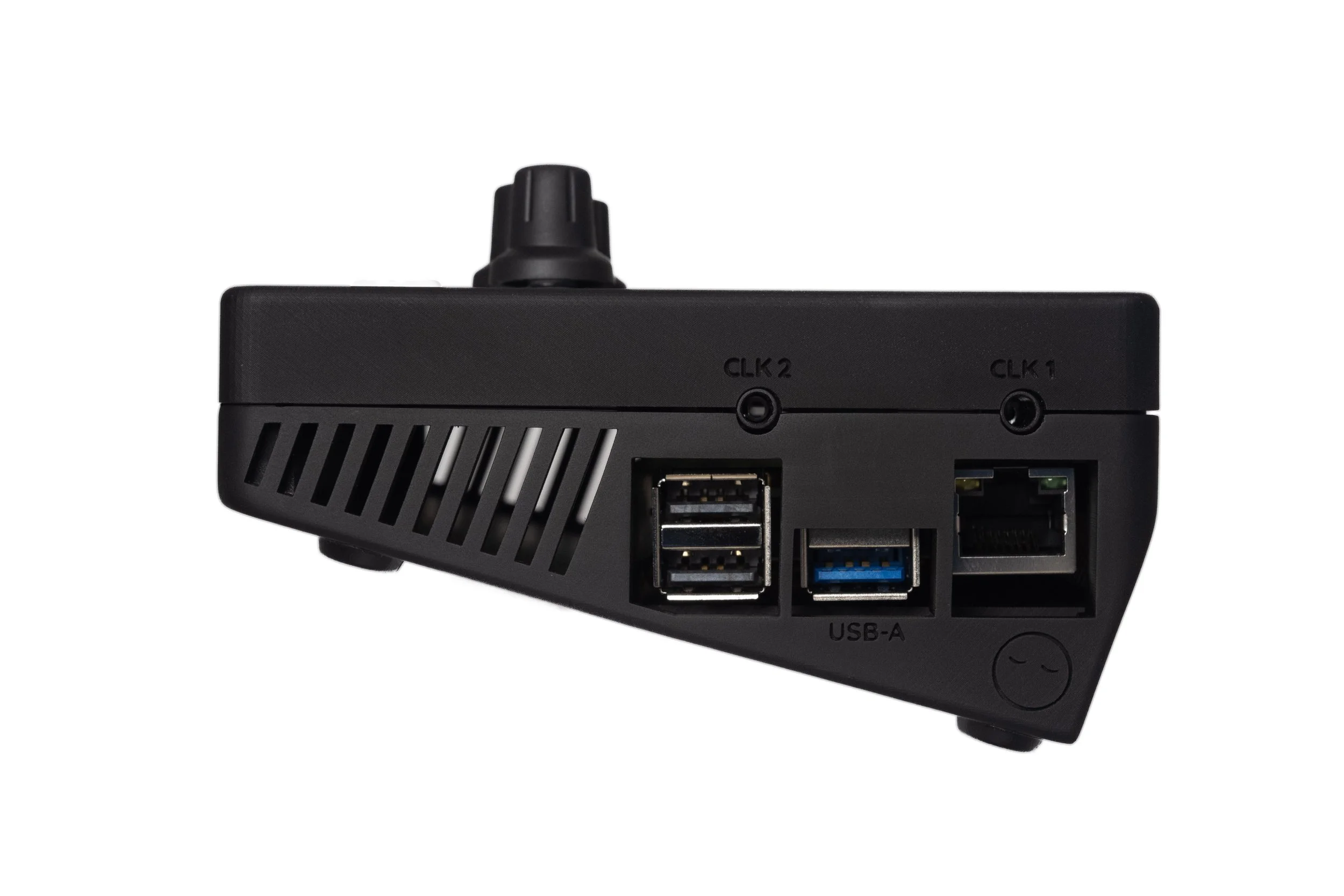

2x Clock Inputs
3x USB-A Ports (Host: Supports Drives, UVC Devices, Webcams & More)
1x 250GB SSD user upgradable to 1TB+ via. single screw access
1x USB-C Power input
2x Micro Video Outputs (only one ext. display is render-able at one time)
1x Luxurious smooth-touch enclosure

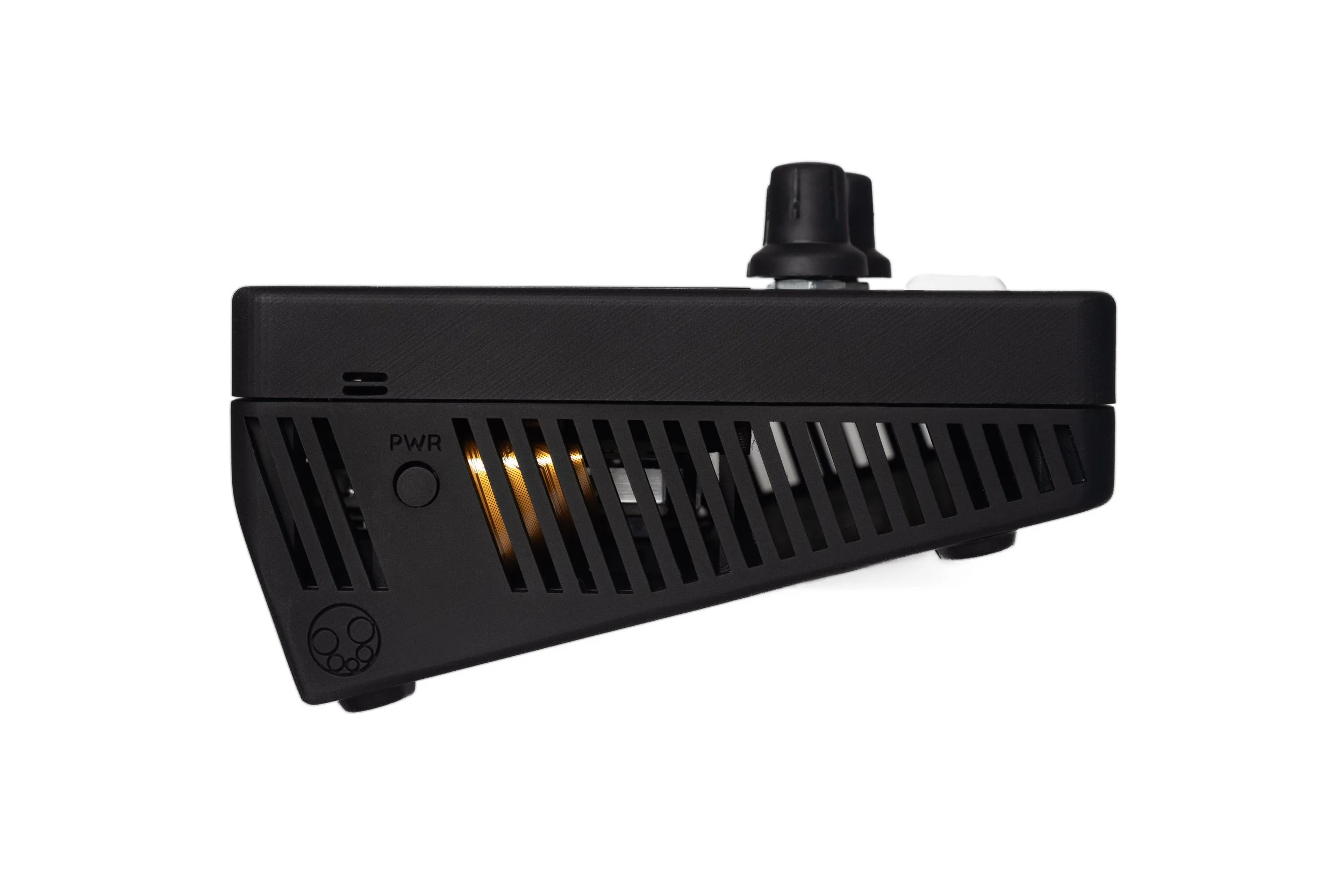

1x Active Cooler (for maximum performance)
1x Ethernet Jack (network for updates & more)
Software Capability Overview
2 Channels of Video Playback, Mixer and FX
Samples up to 1080p source video clips
Mix External Sources w/ up to 2 Cameras/Capture cards at once
User Editable Shape and FX Programs
Renders into a 800x480 video feed that can be infinitely Re-Sampled
Modern Touch Interface - No Guesswork: Preview and mix your content with ease!
Touch UIs are shown only on the internal display so you can tap away while your audience gets a clean render.
Onboard Recording, Rename, Export - Save and Manage your Visuals on Device
Over the Air (OTA) Updates - Quick and painless!
Foundational Factory Library - All core 5 shapes & 5 fx shaders from Hypno 1 are still here and all of our video packs can be pulled from our factory repository with a tap.
Linear Upscaling up to 1080p - the most compatible EDID
MIDI Friendly Engine Layout

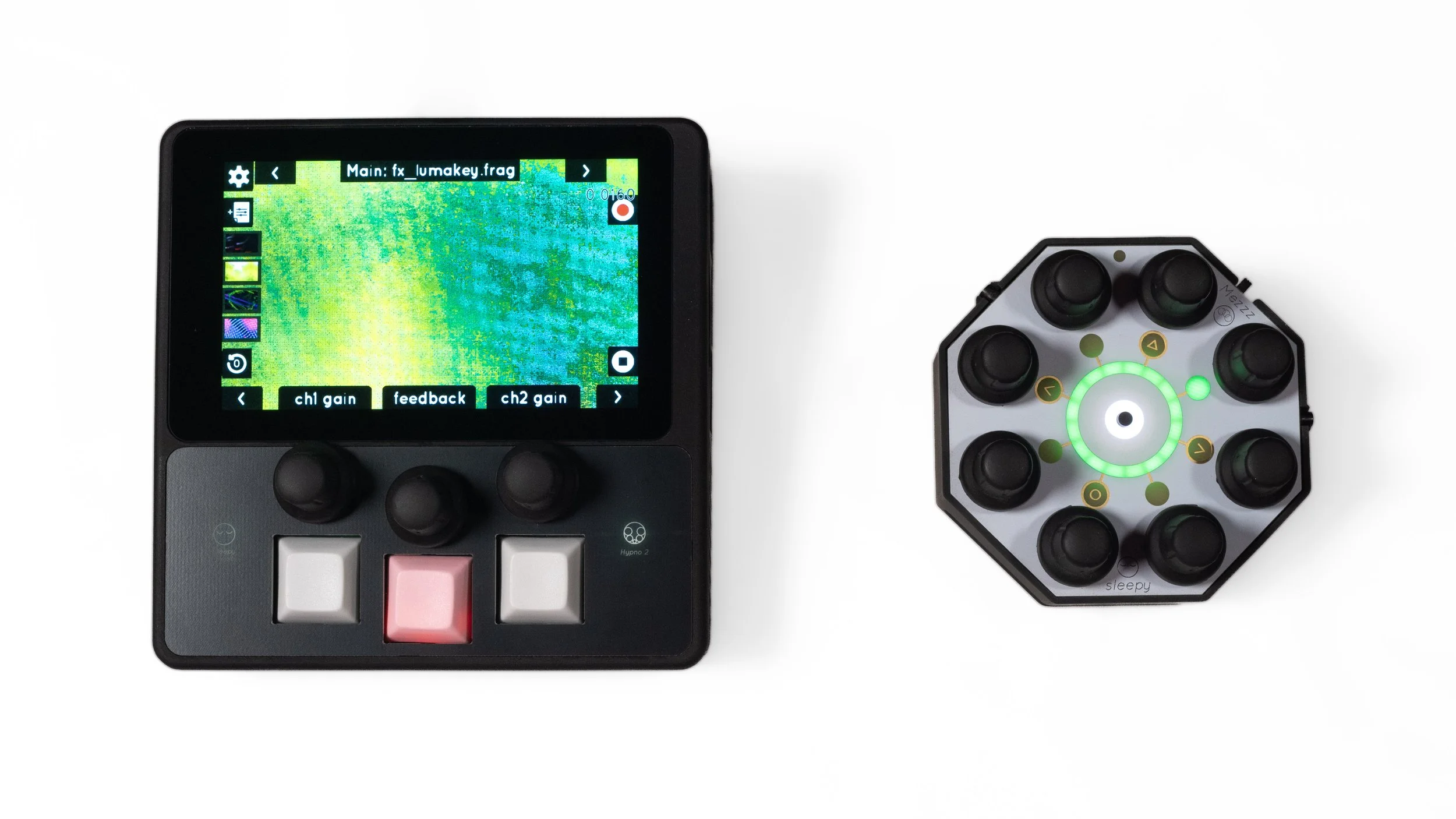

BLE MIDI Support ( Auto Connects to Mezzz )
All Functions Logically Pre Mapped and Architected for MIDI integration

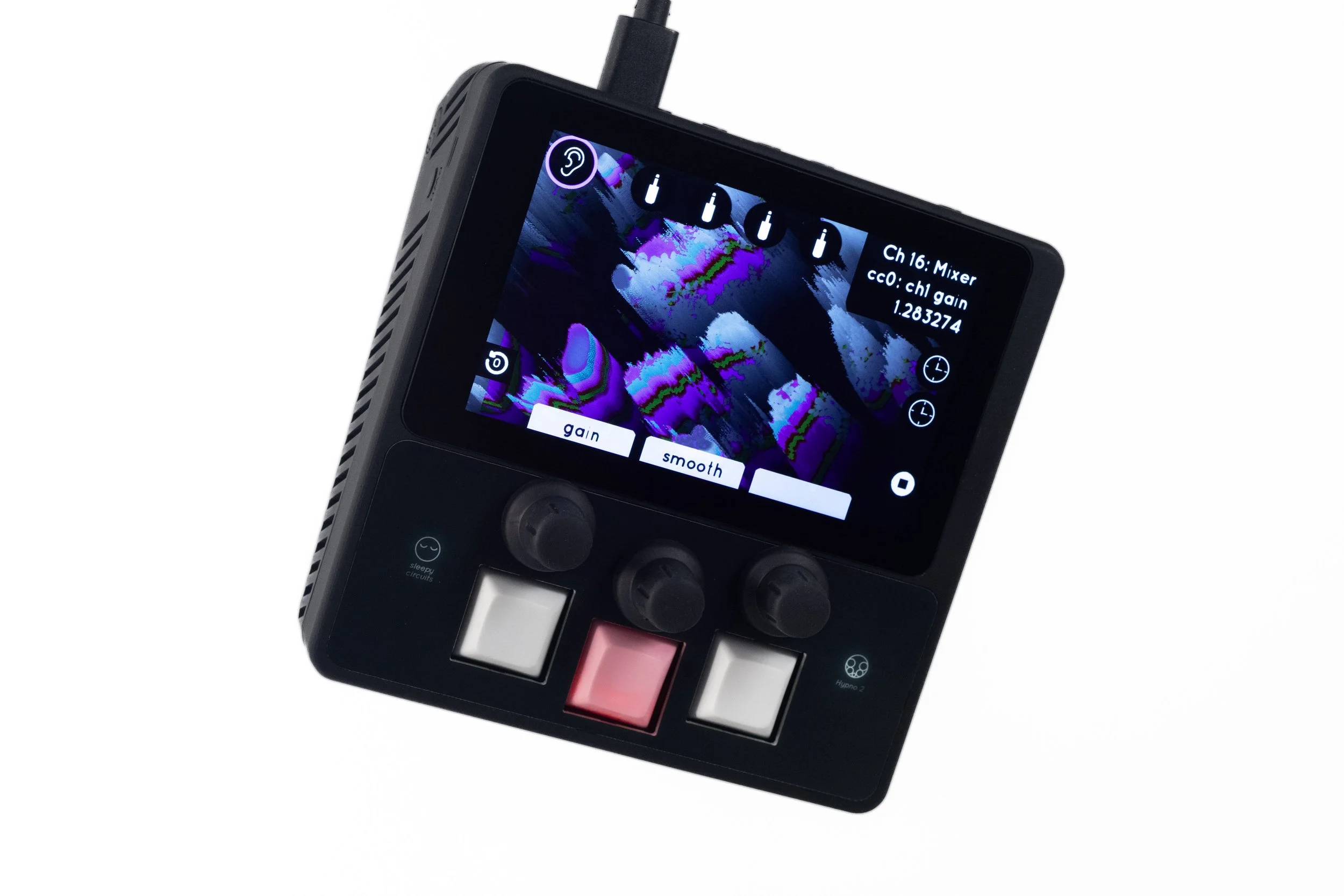

Per-Parameter LFOs & Routing Matrices
Route any CV / CC / Mic / AUX in the entire system to any parameter
Built-in dedicated sync-able LFOs on every parameter with 13 shapes and smoothing
Preset System - Load/Recall Full System States in a Flash
File Browser - a clean, quick interface for navigating and managing your files
Checkboxes: Every file and folder displays a checkbox for multi-selection
Move/Delete/Rename: Robust file management and Export system
Diverse File Support
Videos: h.264 MP4 (up to 1080p)
loaded videos are decompressed and stored raw for maximum read speed
Raster Images: JPEG, PNG (transparency supported)
Vector Graphics: SVG (Scalable Vector Graphics)
Shader Files: supports correctly formatted .frag files with parameter name pre-parser for user created programs (examples/user guides are in the works, see: docs.sleepycircuits.com for updates)
Desktop Mode Support (Cyberdecked Out!)
Fully accessible Linux based Raspberry PI OS (w/ curated minimal starting software)
Encoders control mouse/scrolling, tapping clicks mouse
Buttons emulate esc, space and enter, Tab both side buttons for F11 (Fullscreen Toggle)
Onscreen Touch Keyboard
Great for presentations
Run other creative apps, do your spreadsheets, surf the web, sync your dropbox to the filesystem etc.
